SKU#139961
Precision HD Camera for Aurora Four

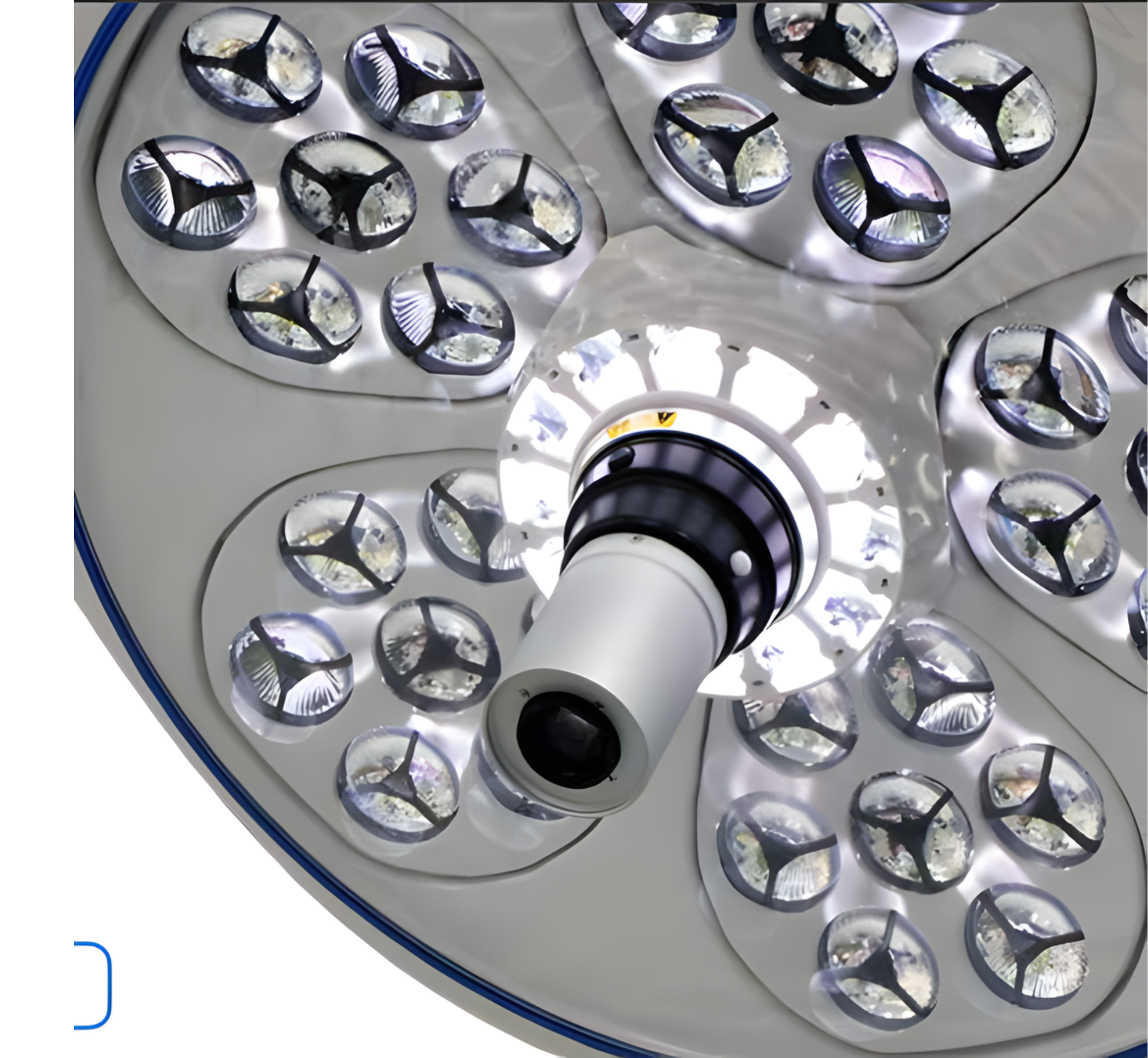

Designed for Aurora Four series lightheads, it can be easily moved between rooms with compatible lightheads. The camera comes with a sterilisable or disposable cover, ensuring protection and granting surgeons control over lighting depth and focus adjustments. It maintains maximum intensity at any distance for optimal surgical visibility.
SKU#139961
Precision HD Camera for Aurora Four
Designed for Aurora Four series lightheads, it can be easily moved between rooms with compatible lightheads. The camera comes with a sterilisable or disposable cover, ensuring protection and granting surgeons control over lighting depth and focus adjustments. It maintains maximum intensity at any distance for optimal surgical visibility.

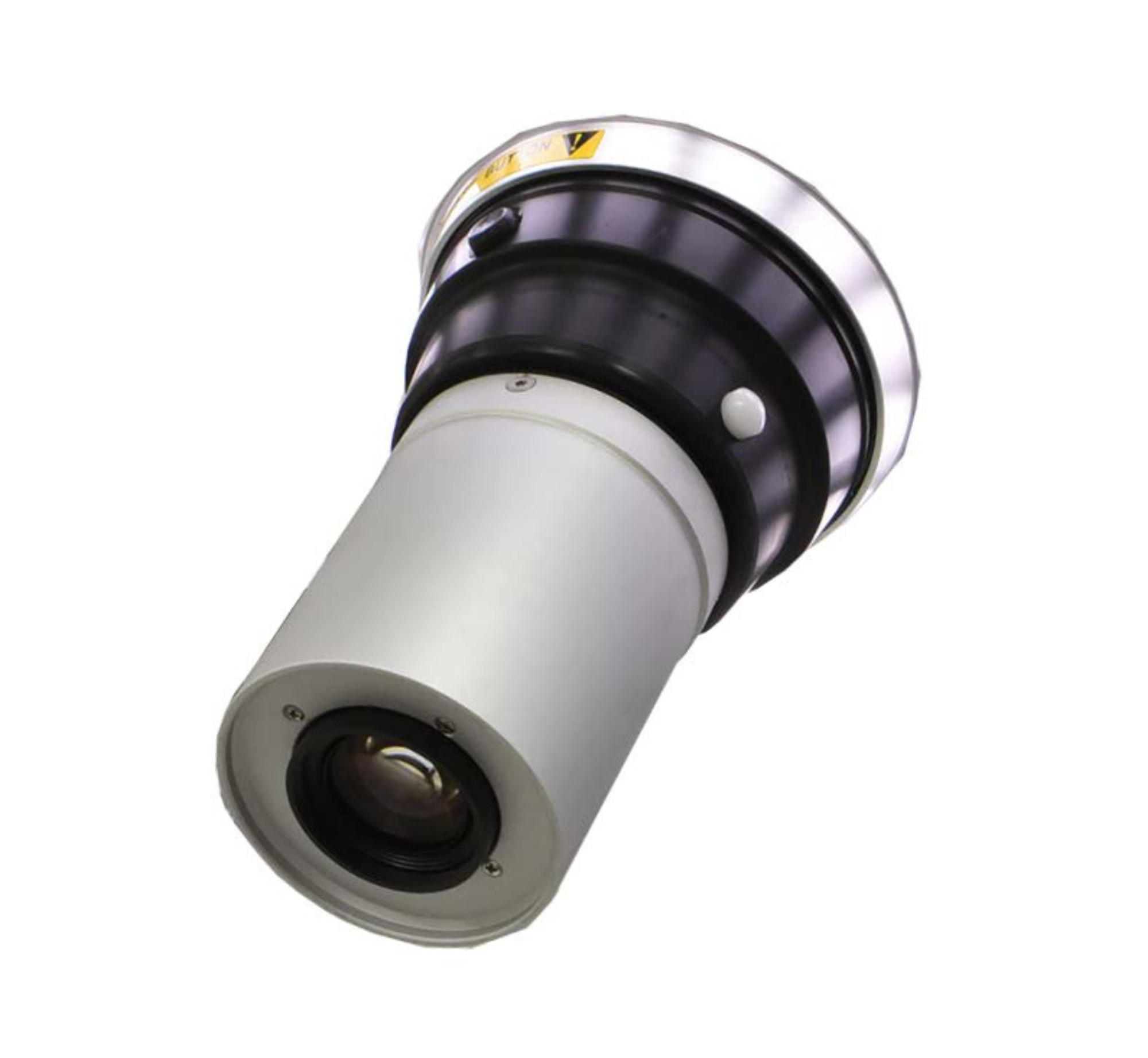

Hipac’s Precision HD Camera delivers dynamic, high-definition surgical imaging designed specifically for Aurora Four lightheads. Offering full 1080i resolution, 10x optical and 12x digital zoom, and continuous 360° rotation, it captures detailed, lifelike images from the surgeon’s perspective.
The camera’s modular design allows it to be moved easily between compatible lightheads for maximum flexibility. A sterilisable or disposable cover protects the camera while enabling sterile control of lighting, focus and zoom functions. With automatic or manual white balance, iris and focus controls, the Precision HD Camera provides exceptional clarity, reliability, and performance for surgical documentation, teaching, and collaboration.
Key Features:
- High definition imaging – 1080i resolution (1920 × 1080) with 1/3-type CMOS sensor for lifelike colour accuracy.
- Powerful zoom capability – 10× optical and 12× digital zoom (total 120×) for capturing minute surgical details.
- 360° continuous rotation – allows unrestricted orientation for the optimal surgical field view.
- Flexible focus and iris control – automatic and manual adjustment for precise lighting balance.
- Exceptional sensitivity – operates at a minimum of 12 lux for consistent performance under low-light conditions.
- High signal-to-noise ratio – >50 dB for clean, sharp images.
- Wide-angle field of view – 50° (wide) to 5.4° (tele) coverage.

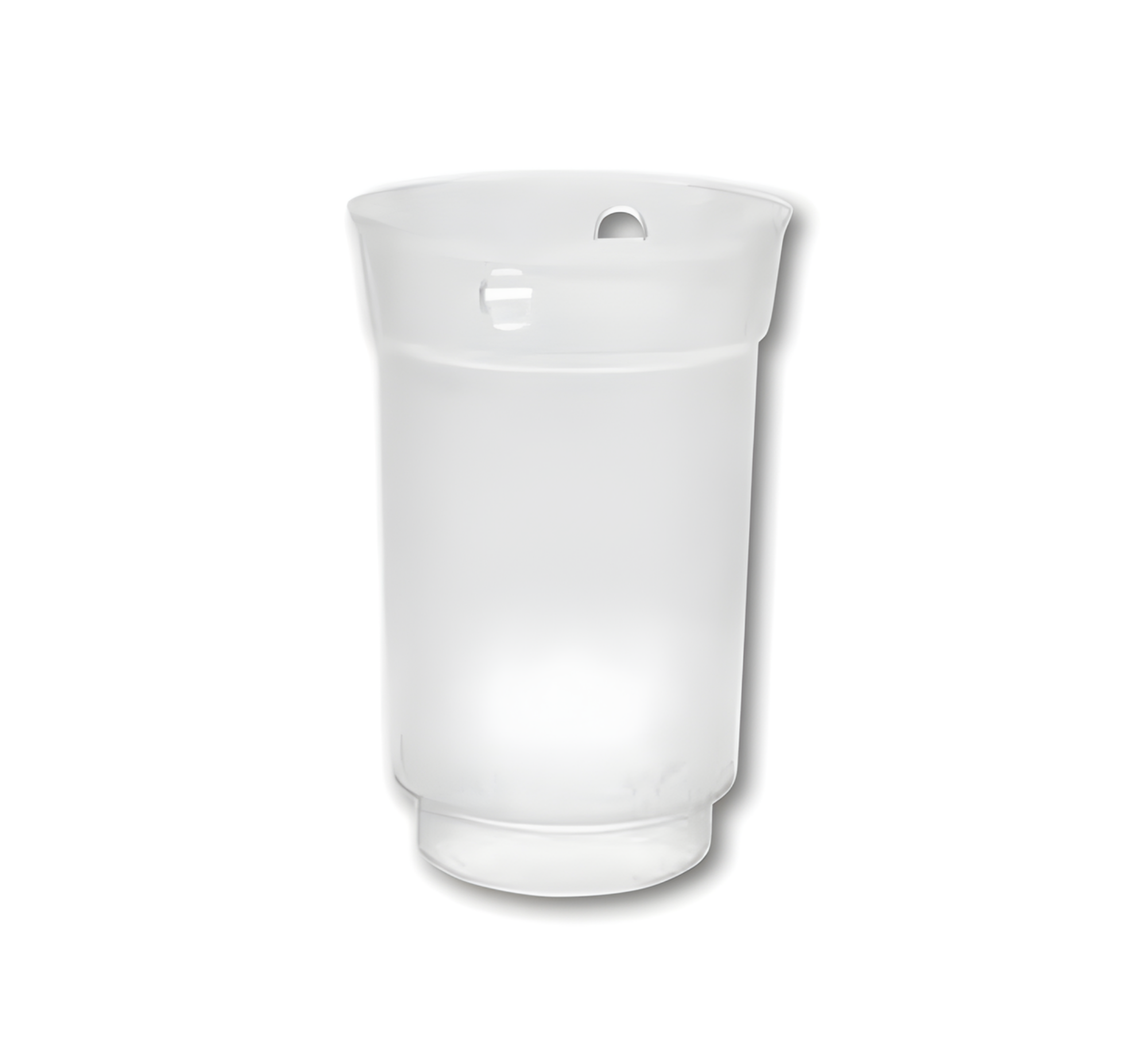

- Sterilisable or disposable camera cover – enables in-field adjustment of lighting and focus while maintaining sterility.
- Compact, lightweight design – weighs only 3.6 kg, allowing easy handling and installation.
- Multiple output formats – supports HD analog component (Y/Pb/Pr, RGB) and HD digital DVI signals for integration into hospital AV networks.

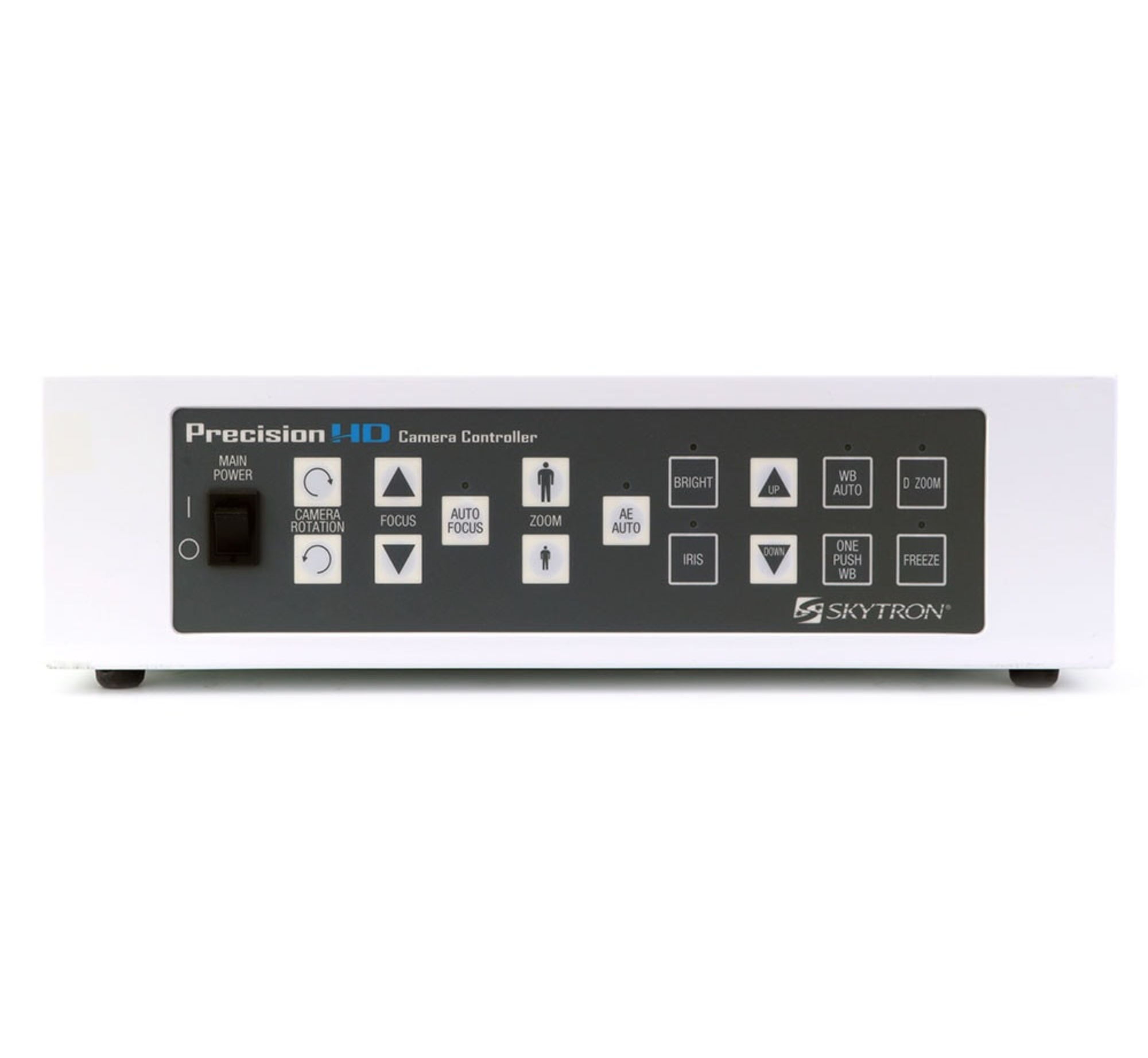

- Camera control unit (CCU) – provides intuitive access to rotation, focus, zoom, iris, exposure and white balance via wall or console interface.
- Flexible installation – quick connect/disconnect faceplate system for use across multiple ORs.
Features
Downloads & Resources
Related products
Related products
-
Bradbury Head Support
The Bradbury Head Support features a seamless design with a vinyl-coated finish, providing comfortable and supportive positioning during medical procedures. -
Gel Ulnar/Brachial Protector
The Gel Ulnar/Brachial Protector, designed to protect the forearm by wrapping around the patient's arm and securing with hook and loop, helps prevent ulnar nerve damage when the patient's arms are tucked to their sides. -
Slip In Arm Support
The Slip In Arm Support is designed to be mounted behind the side rail of the operating table and requires a pad (sold separately). Replacement pads can be found here: Slip In Arm Support Pad. -
Multi Position Armboard
The Multi-Position Armboard, designed to adjust vertically and horizontally while providing sliding, tilting, and rotating capabilities, requires one size 16 clamp for secure mounting.- Requires pad, pad sold separately. Replacement pads can be found here: Multi Position Armboard Pad.
Precision HD Camera for Aurora Four
Designed for Aurora Four series lightheads, it can be easily moved between rooms with compatible lightheads. The camera comes with a sterilisable or disposable cover, ensuring protection and granting surgeons control over lighting depth and focus adjustments. It maintains maximum intensity at any distance for optimal surgical visibility.
Precision HD Camera for Aurora Four
Designed for Aurora Four series lightheads, it can be easily moved between rooms with compatible lightheads. The camera comes with a sterilisable or disposable cover, ensuring protection and granting surgeons control over lighting depth and focus adjustments. It maintains maximum intensity at any distance for optimal surgical visibility.
Lights that go with these tables
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex
Description
Hipac’s Precision HD Camera delivers dynamic, high-definition surgical imaging designed specifically for Aurora Four lightheads. Offering full 1080i resolution, 10x optical and 12x digital zoom, and continuous 360° rotation, it captures detailed, lifelike images from the surgeon’s perspective.
The camera’s modular design allows it to be moved easily between compatible lightheads for maximum flexibility. A sterilisable or disposable cover protects the camera while enabling sterile control of lighting, focus and zoom functions. With automatic or manual white balance, iris and focus controls, the Precision HD Camera provides exceptional clarity, reliability, and performance for surgical documentation, teaching, and collaboration.
Key Features:
- High definition imaging – 1080i resolution (1920 × 1080) with 1/3-type CMOS sensor for lifelike colour accuracy.
- Powerful zoom capability – 10× optical and 12× digital zoom (total 120×) for capturing minute surgical details.
- 360° continuous rotation – allows unrestricted orientation for the optimal surgical field view.
- Flexible focus and iris control – automatic and manual adjustment for precise lighting balance.
- Exceptional sensitivity – operates at a minimum of 12 lux for consistent performance under low-light conditions.
- High signal-to-noise ratio – >50 dB for clean, sharp images.
- Wide-angle field of view – 50° (wide) to 5.4° (tele) coverage.
- Sterilisable or disposable camera cover – enables in-field adjustment of lighting and focus while maintaining sterility.
- Compact, lightweight design – weighs only 3.6 kg, allowing easy handling and installation.
- Multiple output formats – supports HD analog component (Y/Pb/Pr, RGB) and HD digital DVI signals for integration into hospital AV networks.
- Camera control unit (CCU) – provides intuitive access to rotation, focus, zoom, iris, exposure and white balance via wall or console interface.
- Flexible installation – quick connect/disconnect faceplate system for use across multiple ORs.
-
